STEP-DOWN SWITCHING

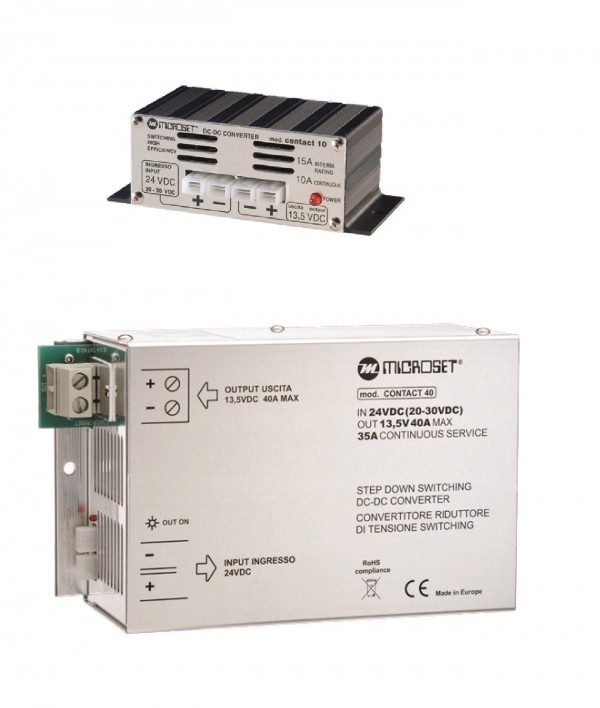

SWITCHING DC-DC CONVERTER: for mobile vehicle applications.
Protection: overload, output overvoltage, polarity inversion. AUTOMOTIVE TEST APPROVAL.
On request converter with output voltage 3,6-5-6-7-8-9Vdc 10Amax (input 12 o 24Vdc).
zoom
MODEL Vdc in Vdc out A out Indicative € price
CONTACT 10 24V
(20-30V)		 13,5V 10-15A 70,00
CONTACT 20 24V
(20-30V)		 13,5V 20A 115,00
CONTACT 40 24V
(20-30V)		 13,5V 40A 180,00

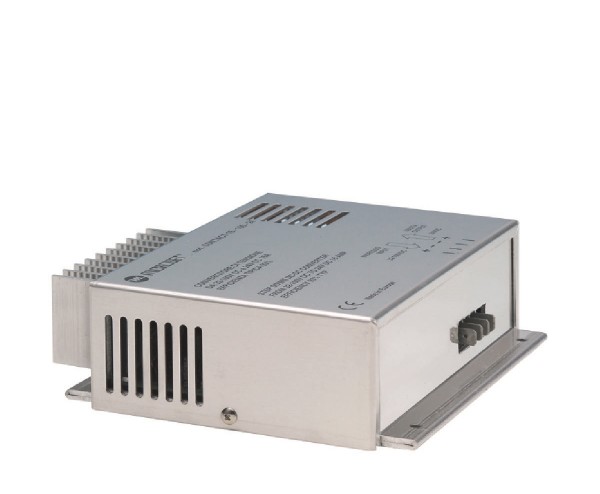

SWITCHING DC-DC CONVERTER WITH WIDE RANGE INPUT VOLTAGE:
for railway transport, industrial systems, renewable energy plants applications.
Protection: overload, output overvoltage, polarity inversion.
zoom
MODEL Vdc in Vdc out A out Indicative € price
CONTACT 40.100.24 80-120V 24V 40A 365,00
CONTACT30.48.12 40-55V 13,5V 30A 310,00
