STEP-UP / STEP-DOWN

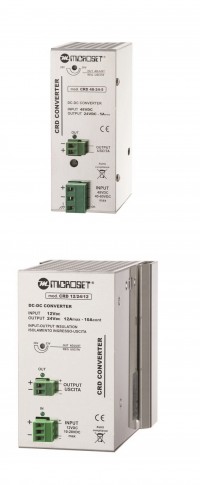

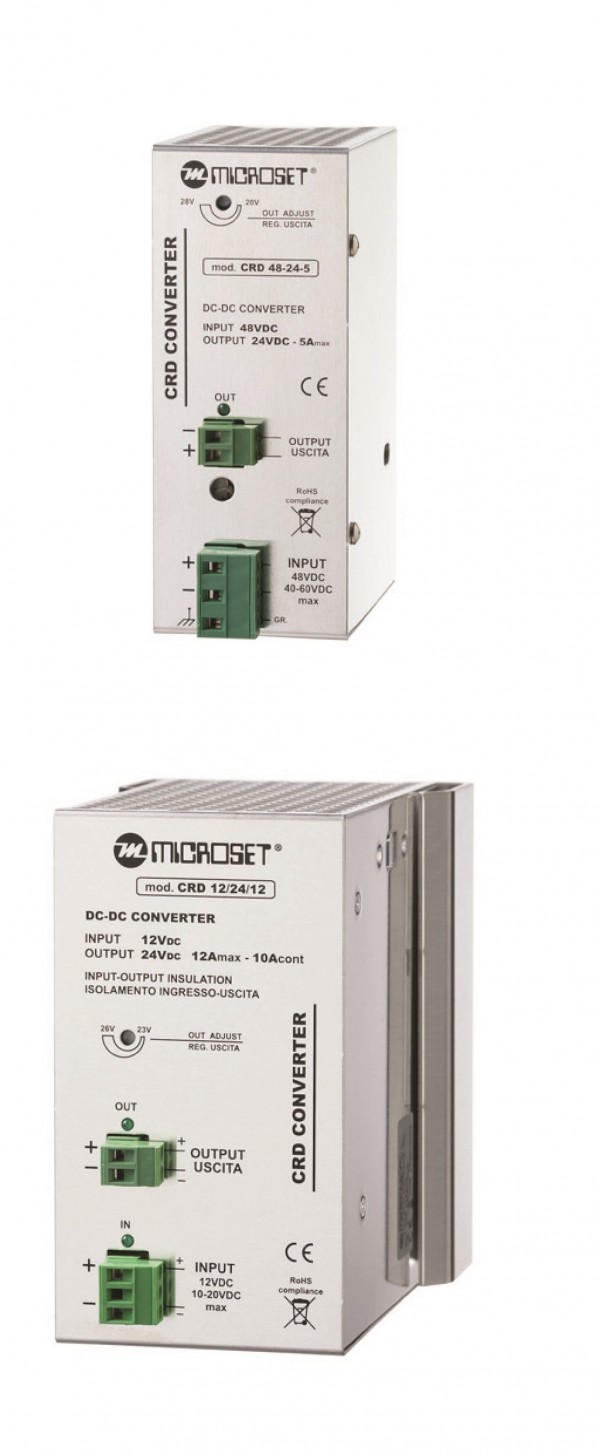

SWITCHING DC-DC CONVERTER WITH IN-OUT GALVANIC INSULATION, RAIL BAR MOUNTING: for all applications.
Floating polarity, adjustable output voltage ±15%. Blower less. Protection: overload, polarity inversion.
zoom
MODEL Vdc in Vdc out A out Indicative € price
CRD 12.12.15 12V
(9-18V)		 13,5V
(10-17V)		 12-15A 215,00
CRD 12.19.12 12V
(9-18V)		 19V 10-12A 215,00
CRD 12.24.12 12V
(9-18V)		 24V
(23-26V)		 10-12A 220,00
CRD 24.12.20 24V
(20-30V)		 13,5V
(10-17V)		 15-20A 215,00
CRD 24.24.14 24V
(20-30V)		 24V
(23-26V)		 10-14A 230,00
CRD 24.48 24V
(20-30V)		 48V
(47-56V)		 7-9A 240,00
CRD 48.12.4 48V
(40-60V)		 13,5V
(12-15V)		 2-4A 120,00
CRD 48.12.7 48V
(40-60V)		 13,5V
(8-16V)		 5-7A 145,00
CRD 48.12.18 48V
(40-60V)		 13,5V
(10-17V)		 15-18A 230,00
CRD 48.24.2 48V
(40-60V)		 24V
(21-28V)		 1,5-2A 120,00
CRD 48.24.5 48V
(40-60V)		 24V
(21-28V)		 4-5A 155,00
CRD 48.24.12 48V
(40-60V)		 24V
(23-31V)		 10-12A 215,00
CRD 48.48 48V
(40-60V)		 48V
(47-56V)		 8-10A 230,00
CRD 80.24.10 68-85V 24V
(23-31V) 		8-10A 250,00
